Fiber Optic MDU Box - MTeH MINI

R 110.00 ZAR
R 160.34 ZAR R 110.00 ZAR
Sale Sold out
Shipping calculated at checkout.

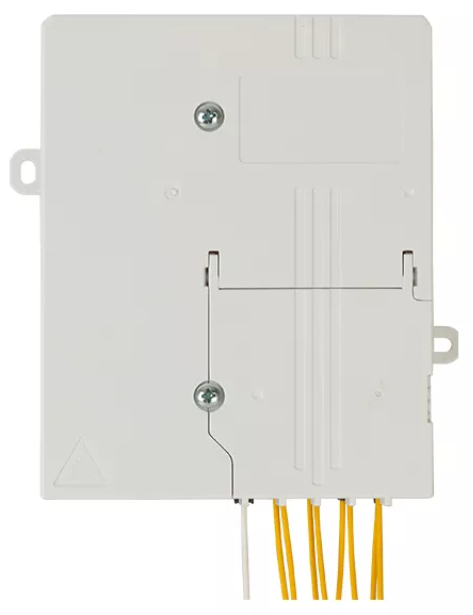

The Fiber Optic Box MTeH MINI finds its application as a floor or a main fiber distribution box in apartment buildings / MDUs or single-family houses. It supports all cable applications (riser cables, buffered tubes, microtubes and ribbon cables), and it can be used for GPON networks with a pre-installed splitter. Its unique compact design and factory connectorized options help reduce assembly time and installation costs by up to 50 %.

Key Features

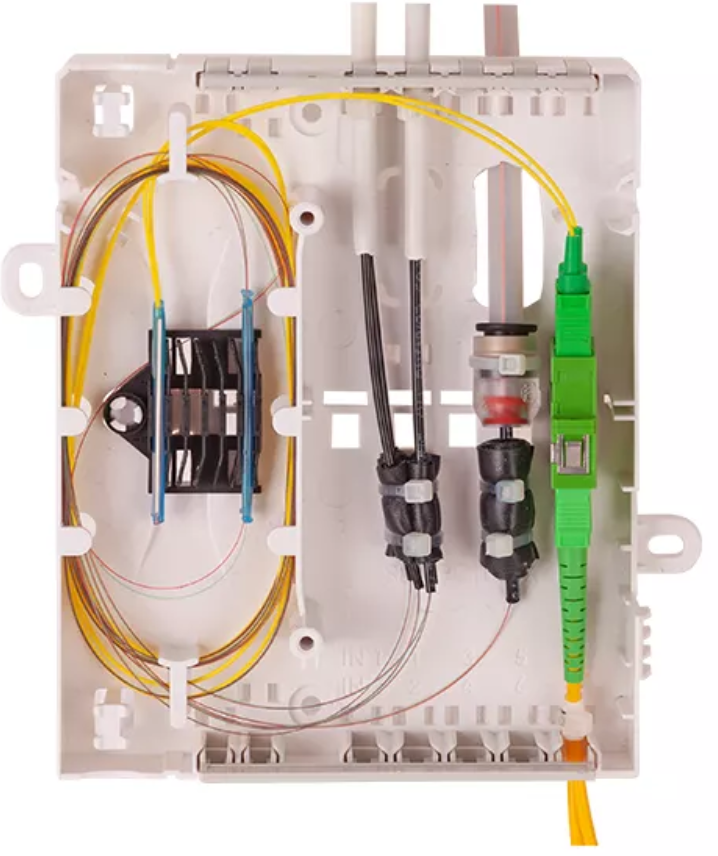

  • The MTeH MINI enables termination of connectors and splicing of optical fibers.
  • It can be pre-installed with adapters, pigtails or splitters from manufacturing.
  • Compact size makes installation in small spaces possible.

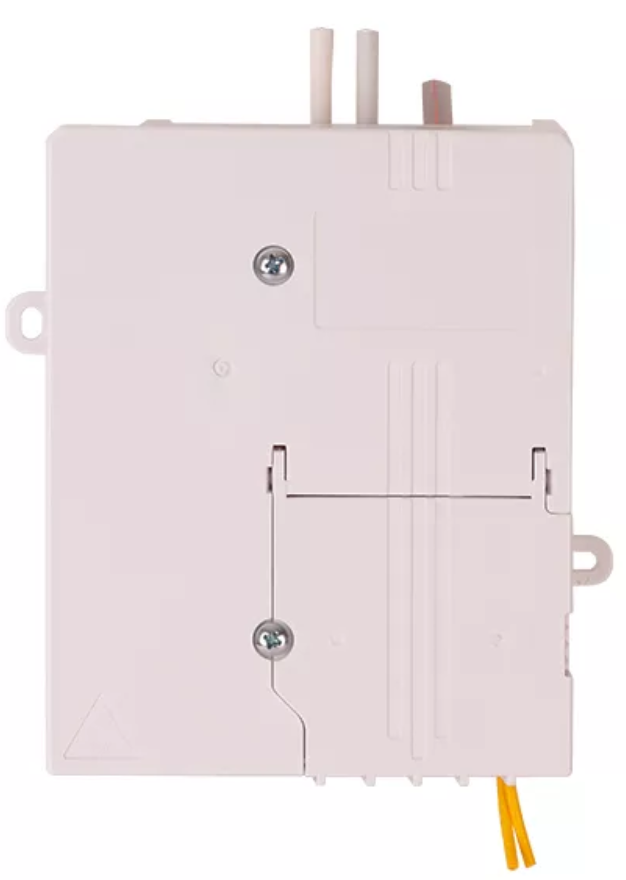

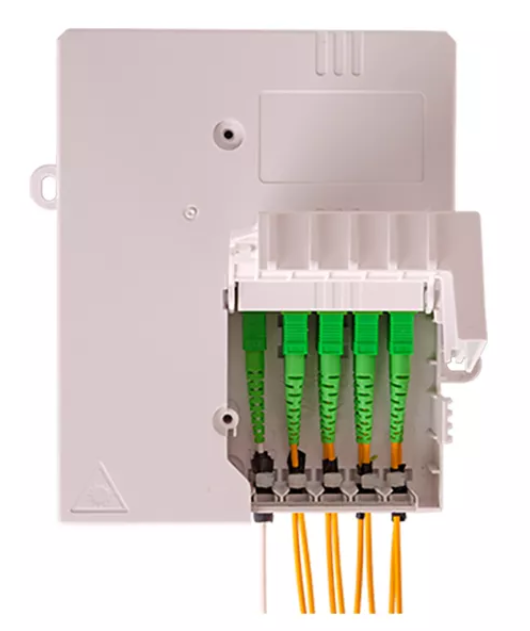

  • Two screw-lock doors – a larger one for a technician with professional skills, who works with splitters, splices and pigtails, and a smaller one for a technician without professional skills, who connects customer drop cables.

Other Features

  • Capacity of up to 14 splices
  • Capacity of up to 12× SC / 24× LC connector (in case of a pre-connected cable)
  • Capacity of up to 10× SC / 12× LC connector (in case of termination by splicing on pigtails)
  • Integrated holder to support 2 splices in the base of the box, possibility to place a holder for 12 splices

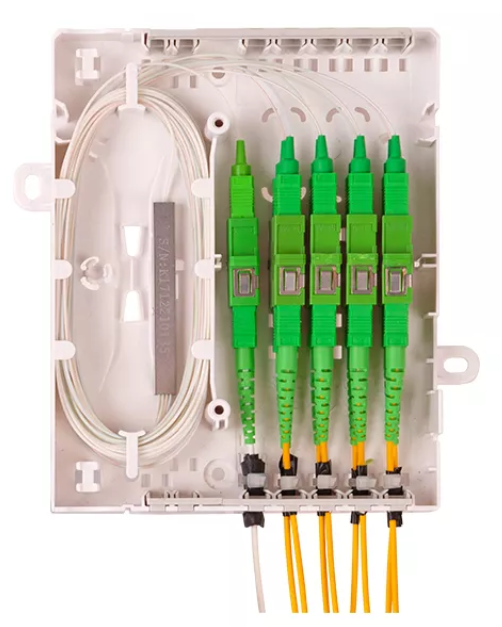

  • PLC Splitter capability (1:2, 1:4, 1:8, 1:16 with LC connectors)
  • Multiple cable or tube entry ports placed on all sides of the box increasing installation flexibility

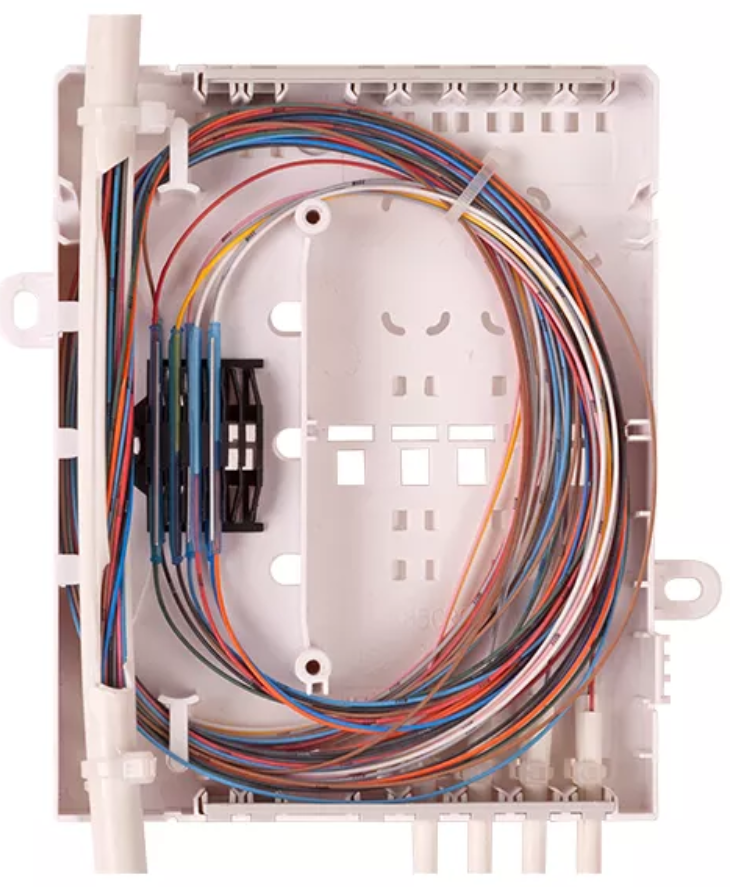

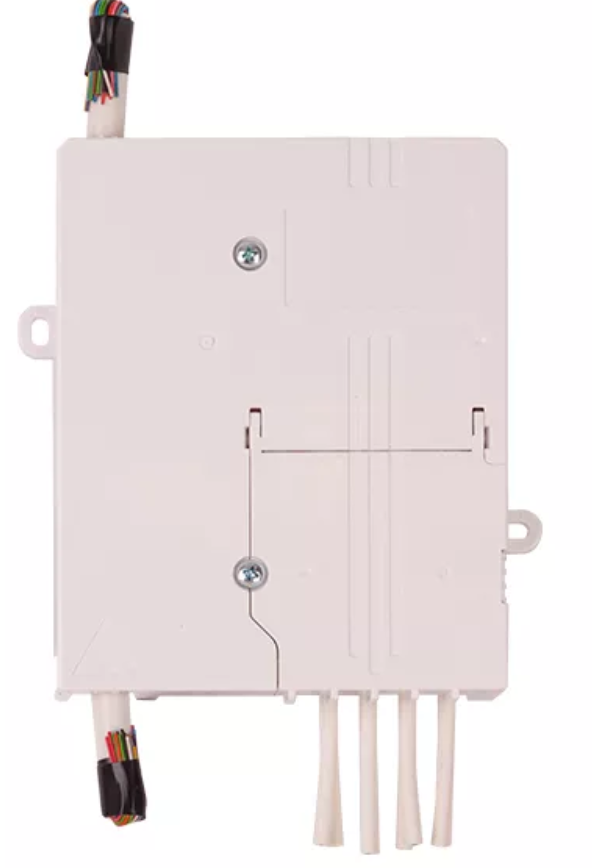

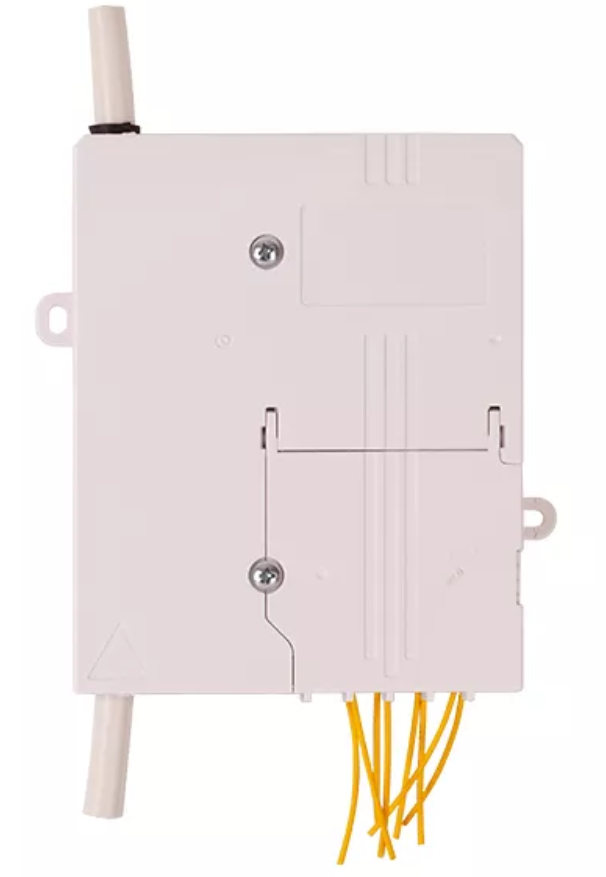

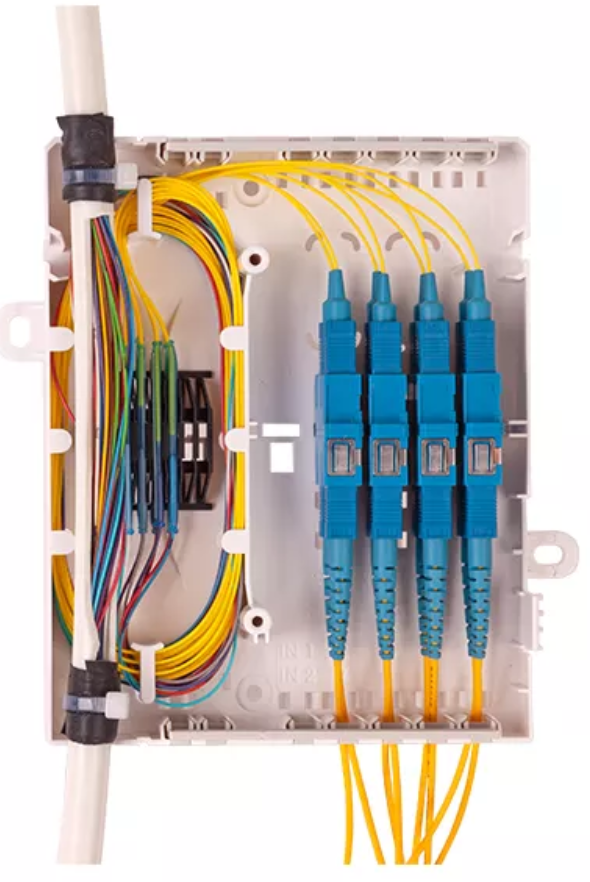

  • Support for vertical midspan (loop-through) cable
  • Pre-moulded holes in the base for routing a cable through a wall
  • Dedicated place for a company logo on the door of the box



NOTE:

Supplied without Splice protectors, Midcouplers, Pigtails and Splitters.
